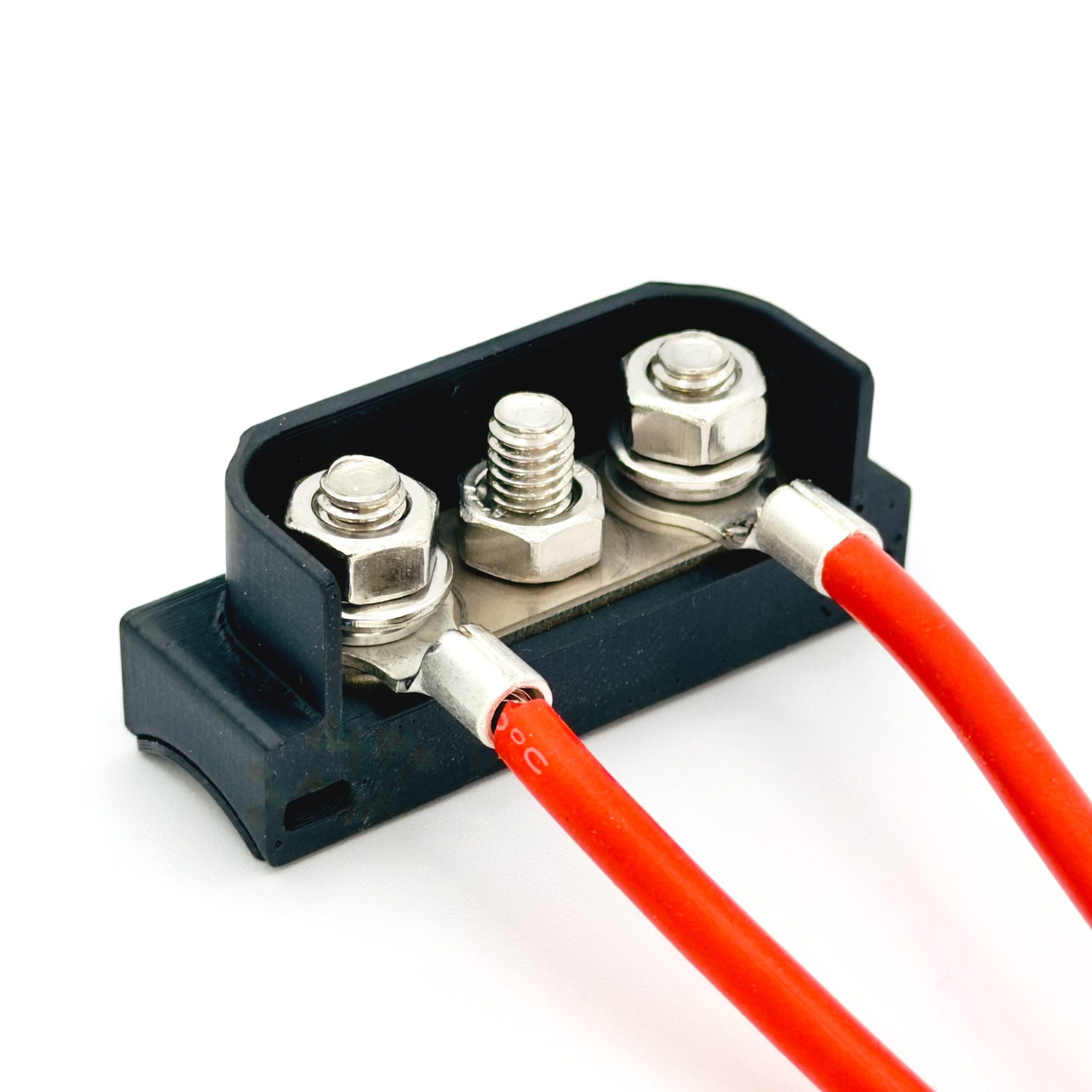

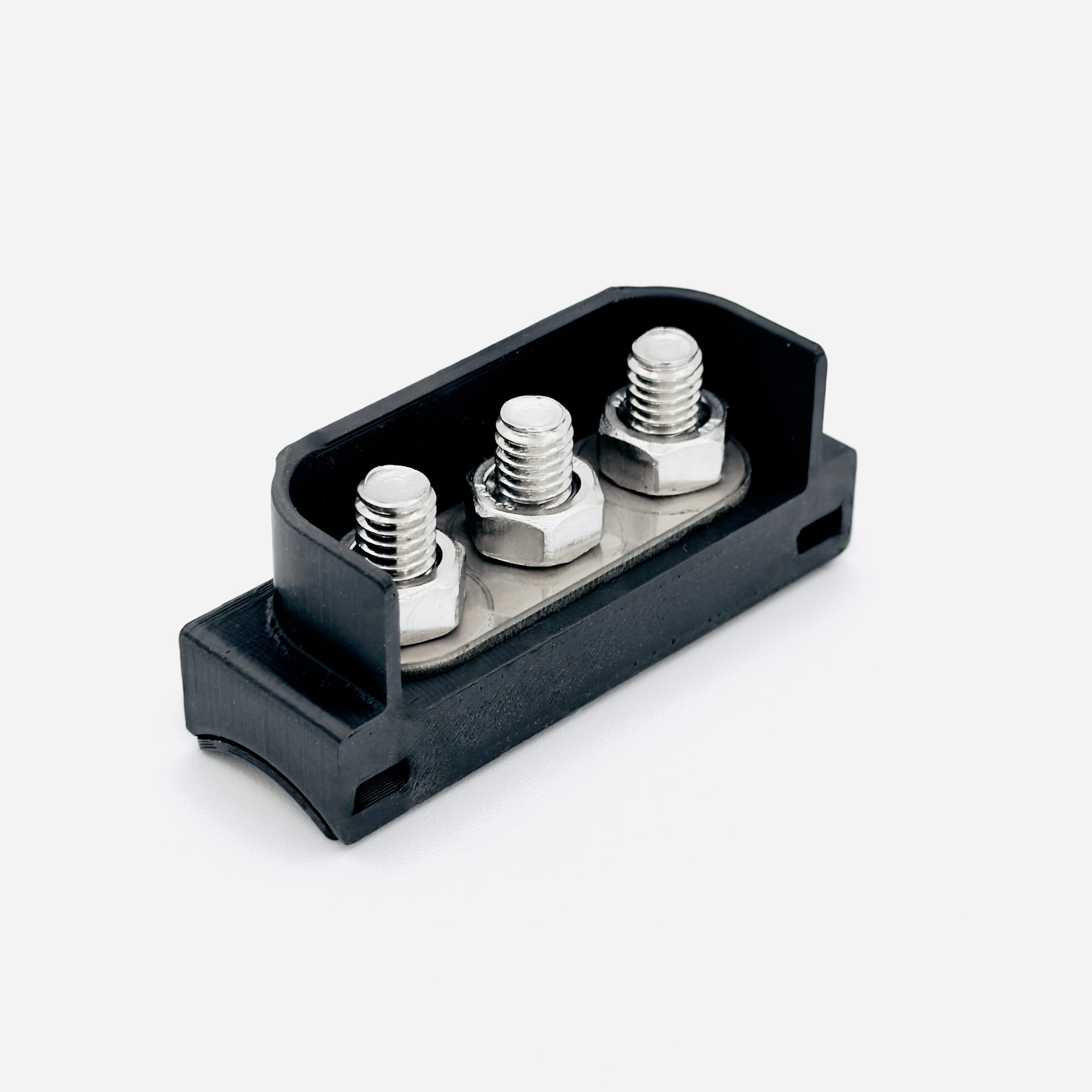

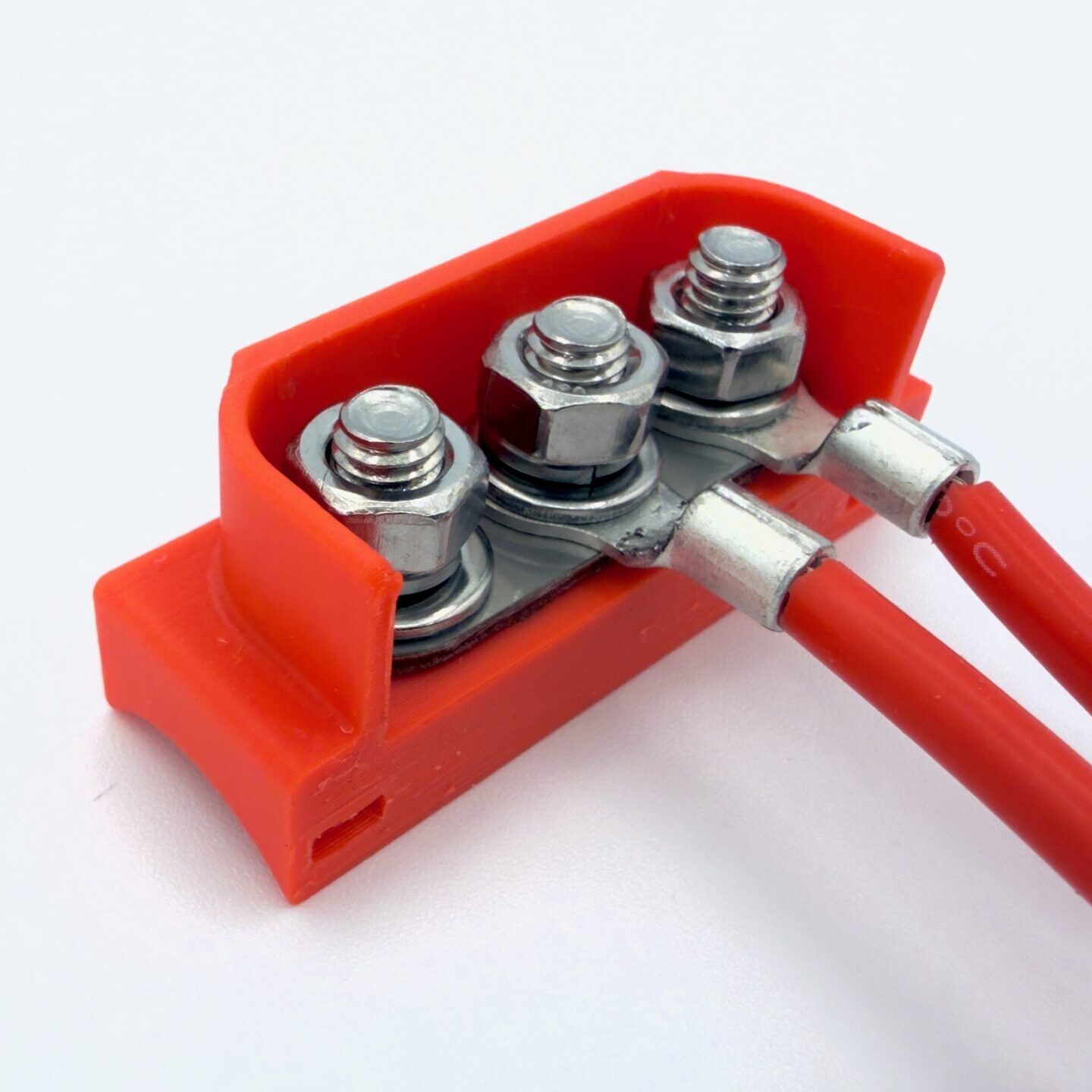

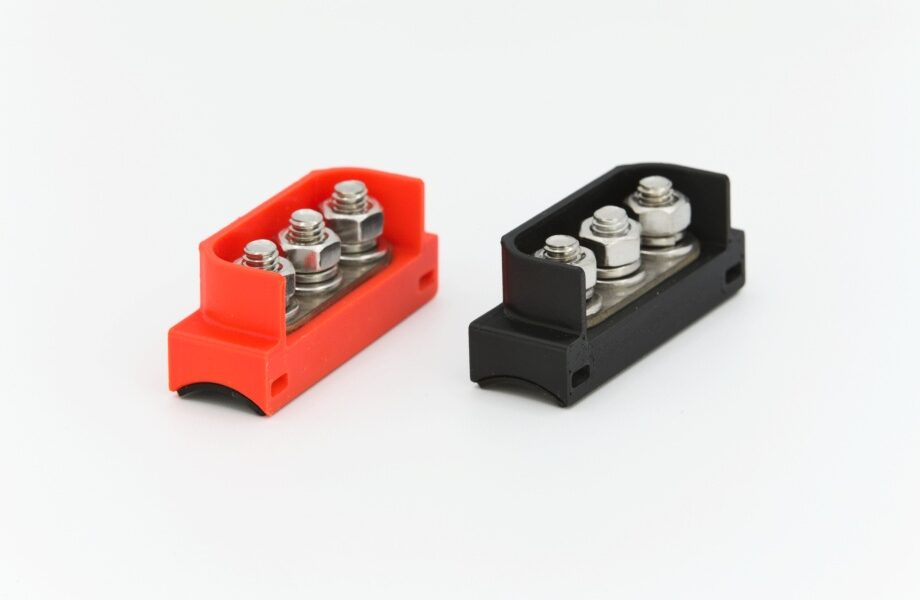

Frame Mount M6 Terminal (Shielded)

Clean up your wiring with our frame-mount M6 terminals! These add an easy connection point for heavy-gauge wires. Simply slide the provided heavy-duty zip ties through the housing, attach them to the frame of your motorcycle, and add your connectors. This version includes plastic shielding to help prevent shorts for when your power bus is in close proximity to exposed metal.

• • Connection Type: M6 Ring/Fork Connectors, 1/4″ Ring/Fork Connectors
  • Amp Rating: Up to 100 Amps DC
  • Connector Material: 304 Stainless Steel
  • Housing Material: ASA
  • Quantity: Pack of (2)
  • Dimensions: L 0.71″ (18.01mm) × W 2.16″ (54.9mm) × H 0.79″ (20.46mm)

Our connectors are made with stainless steel and ASA, providing exceptional rust, temperature, chemical, and UV resistance. These connectors are ideal for battery, starter motor, starter solenoid, relay, and power bus connections. Choose the diameter of the frame pipe you will be attaching to below!
